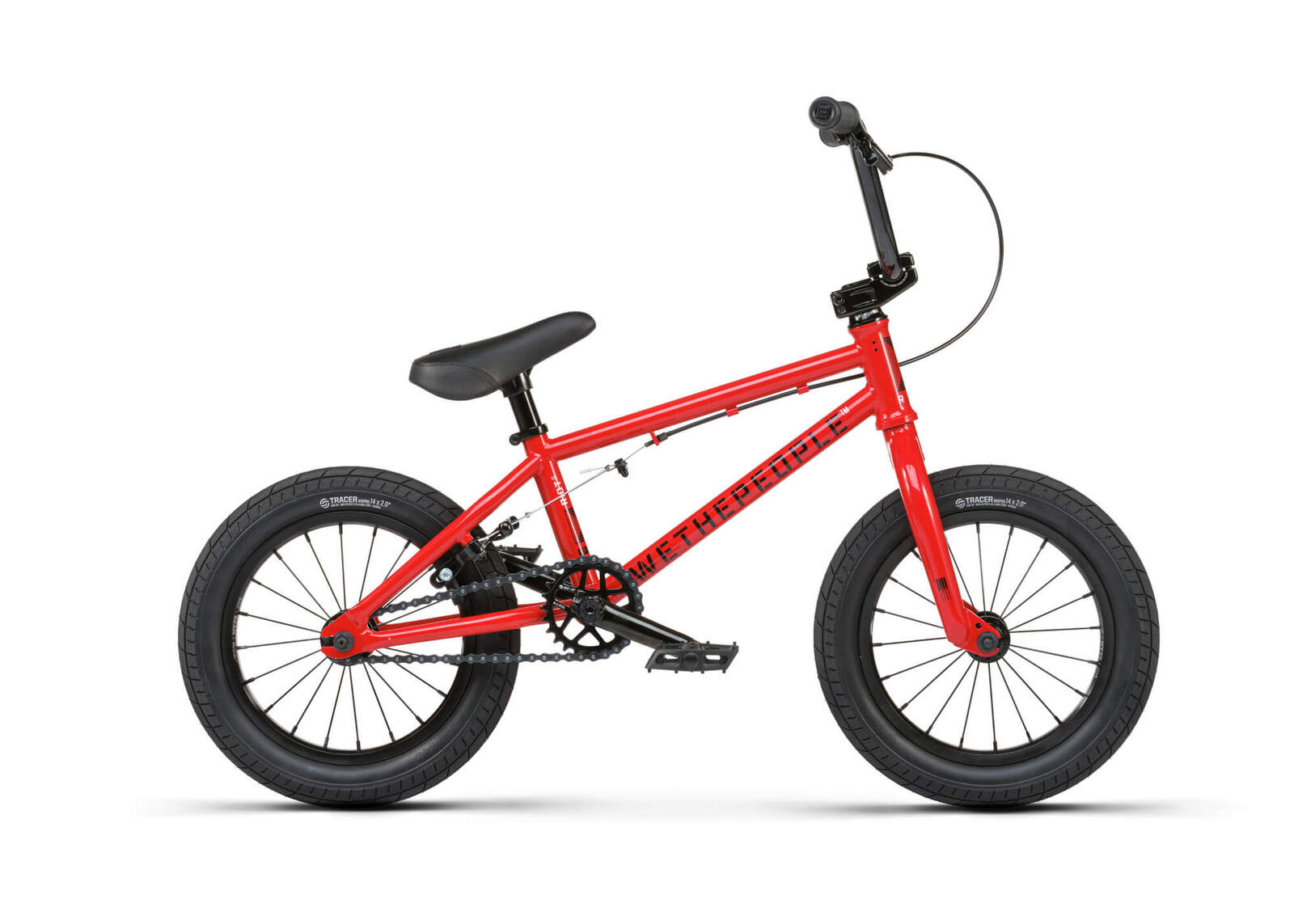

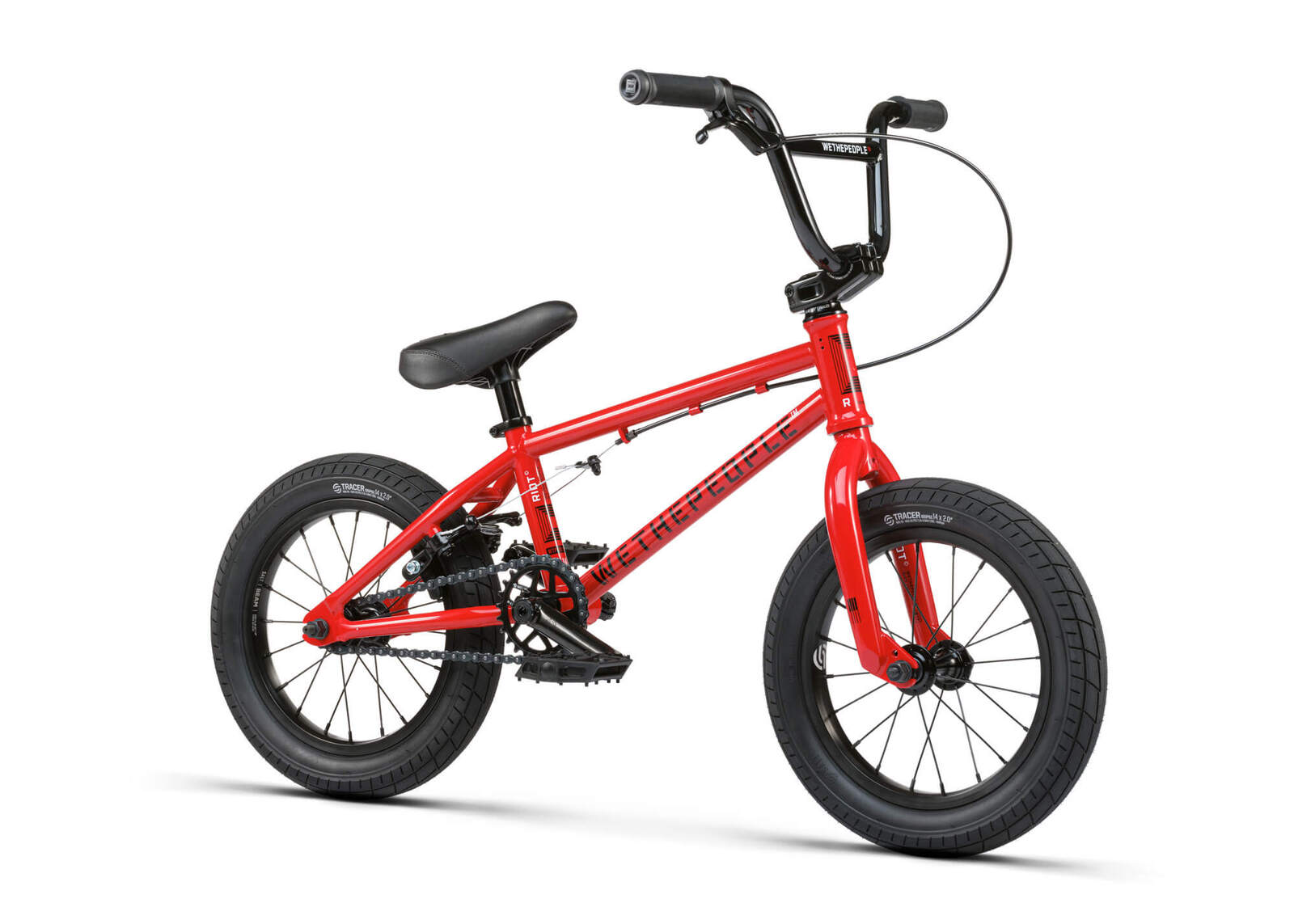

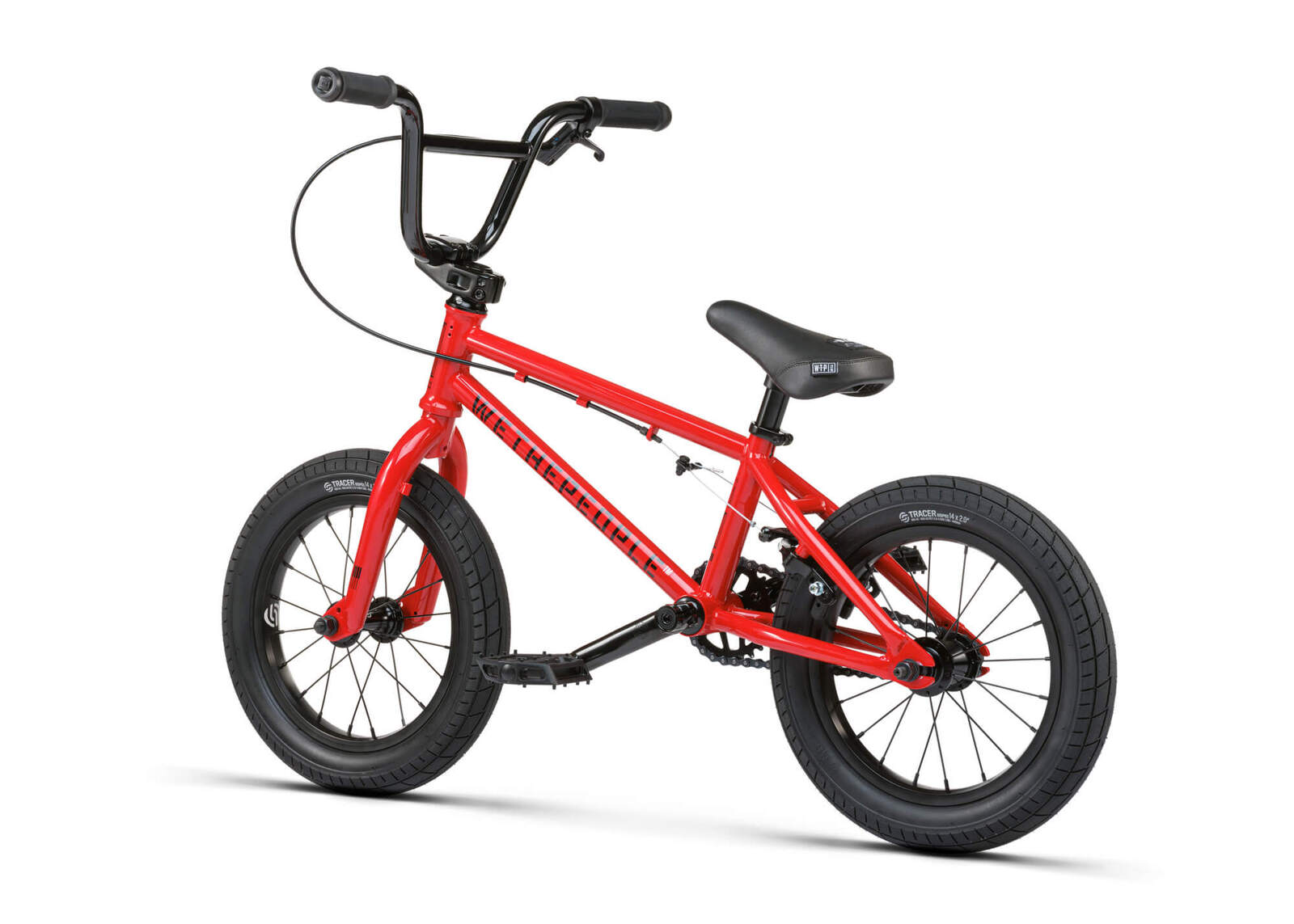

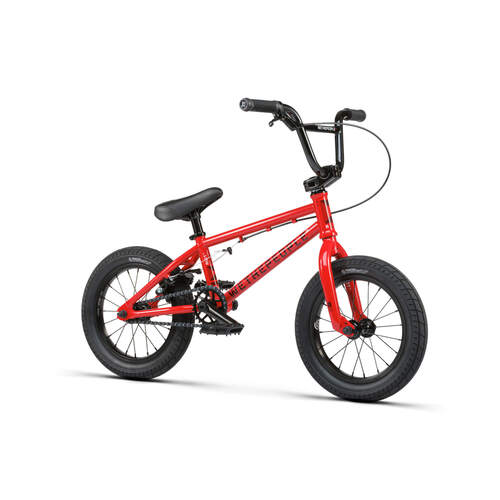

WETHEPEOPLE RIOT 14 RED BIKE



The Riot allows an the even younger rider to jump on a bike designed with fun and progression at the forefront. The smaller 14” wheels on the Riot allow even the smallest of shredders to gain confidence and learn on, and the slimmer tubing and custom designed components provide a lightweight, sturdier bike capable of so much more than any other 14” bike on the market.



SPEC

FRAME - WETHEPEOPLE "RIOT" frame, 1020 hi-ten

FORK - SALT "RIOT" fork, 1020 hi-ten, 4130 crmo steerer, 26mm offset

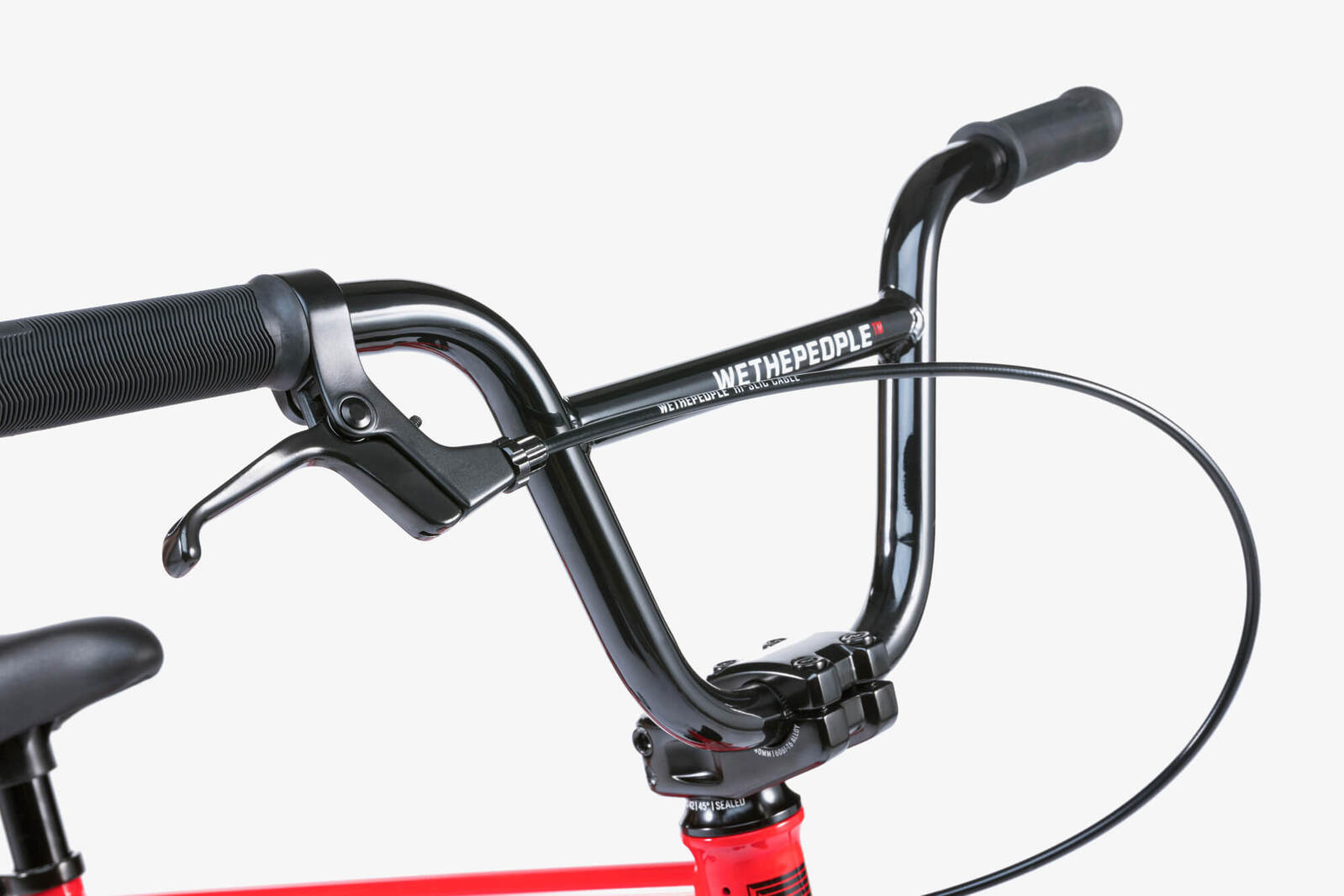

BARS - SALT "RIOT" bar, 1020 hi-ten

GRIPS - WETHEPEOPLE "ARROW 110" grips, flangeless

STEM - SALT "JUNIOR" topload stem, 40mm reach

HEADSET - SALT "PRO" int. headset, sealed bearing

GYRO - holes for removable gyro tabs

LEVER - SALT "RIOT" brake lever, alloy

BRAKES - SALT "HAMMERCOIL" u-brake rear, alloy

CRANKS - SALT "RIOT" tubular 3pc crank, crmo, 114mm, 16 spline, hollow spindle

BB - SALT "SPANISH" bb, 19mm, press fit, sealed bearing

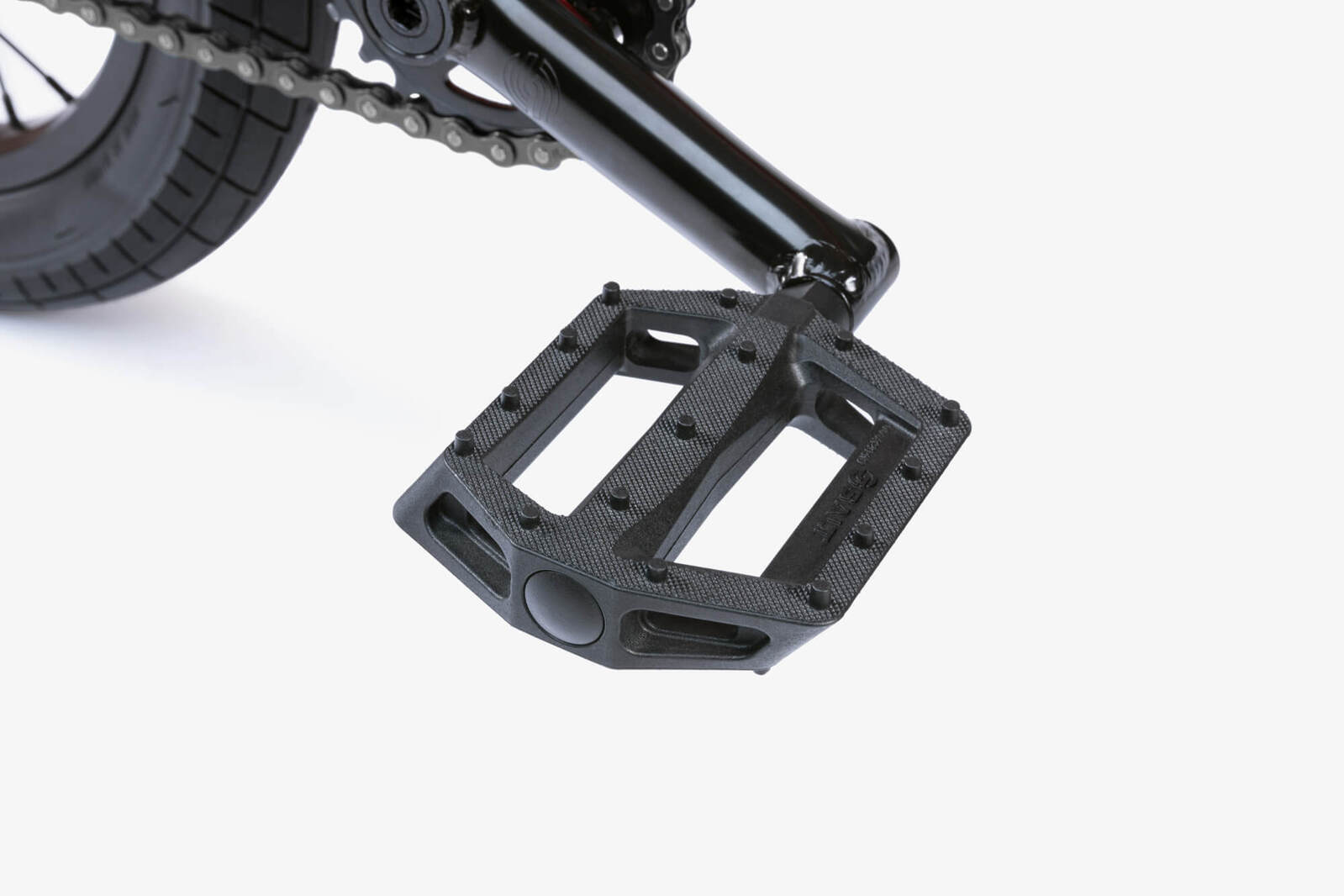

PEDALS - SALT "JUNIOR PRO" pedals, nylon/fiberglass

CHAIN - SALT "AM" chain, Z1 type

SPROCKET - SALT "GATEWAY" sprocket, steel, 25t

DRIVER - 1pc cassette driver, 10t, loose ball bearing

FRONT HUB - SALT "RIOT" hub, alloy, loose ball, 3/8"s axle, 20h

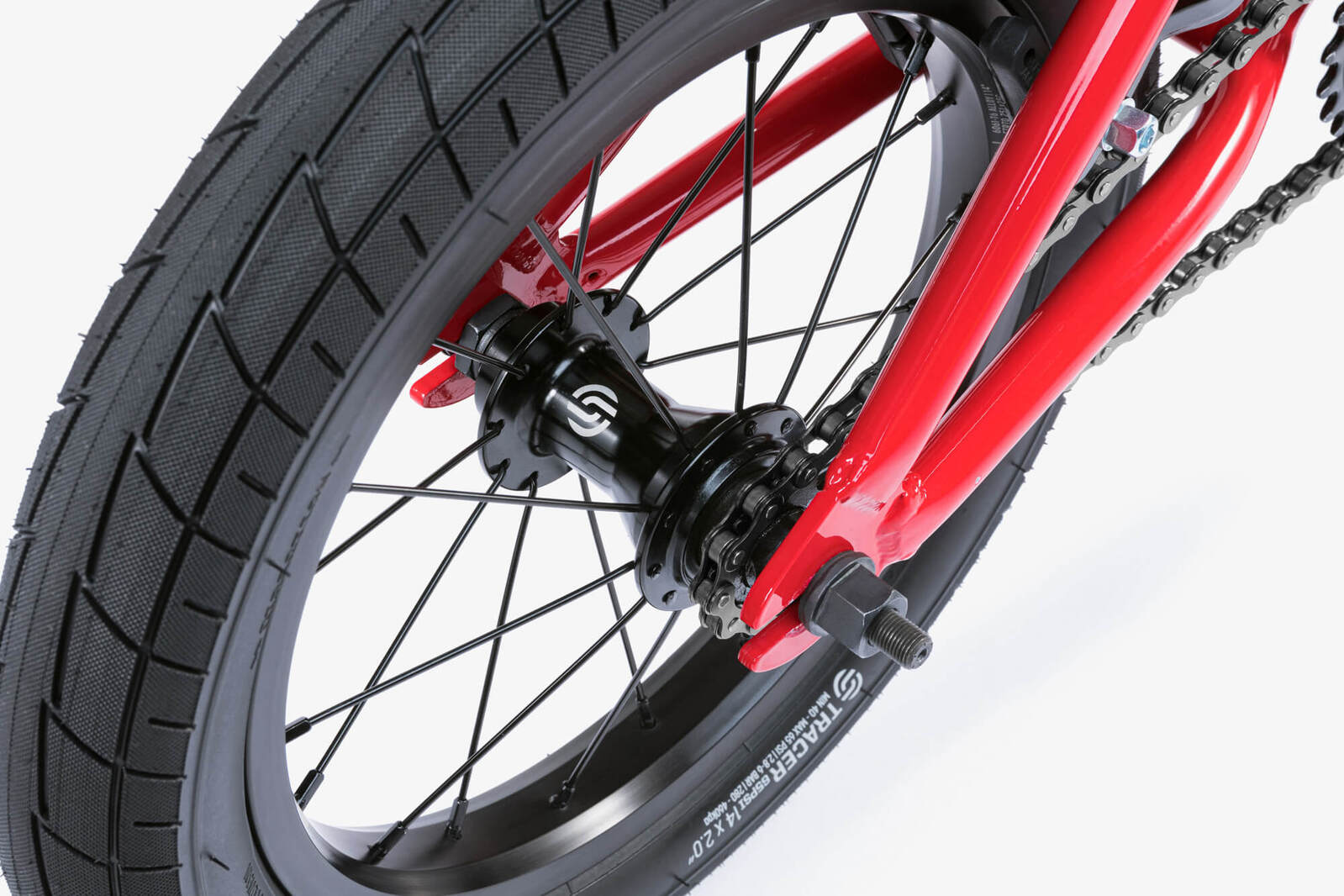

REAR HUB - SALT "RIOT" cassette hub, semi sealed, 10t, 3/8"s axle, 20h

FRONT RIM - SALT "BEAM" rim, single wall, 20h

REAR RIM - SALT "BEAM" rim, single wall, 20h

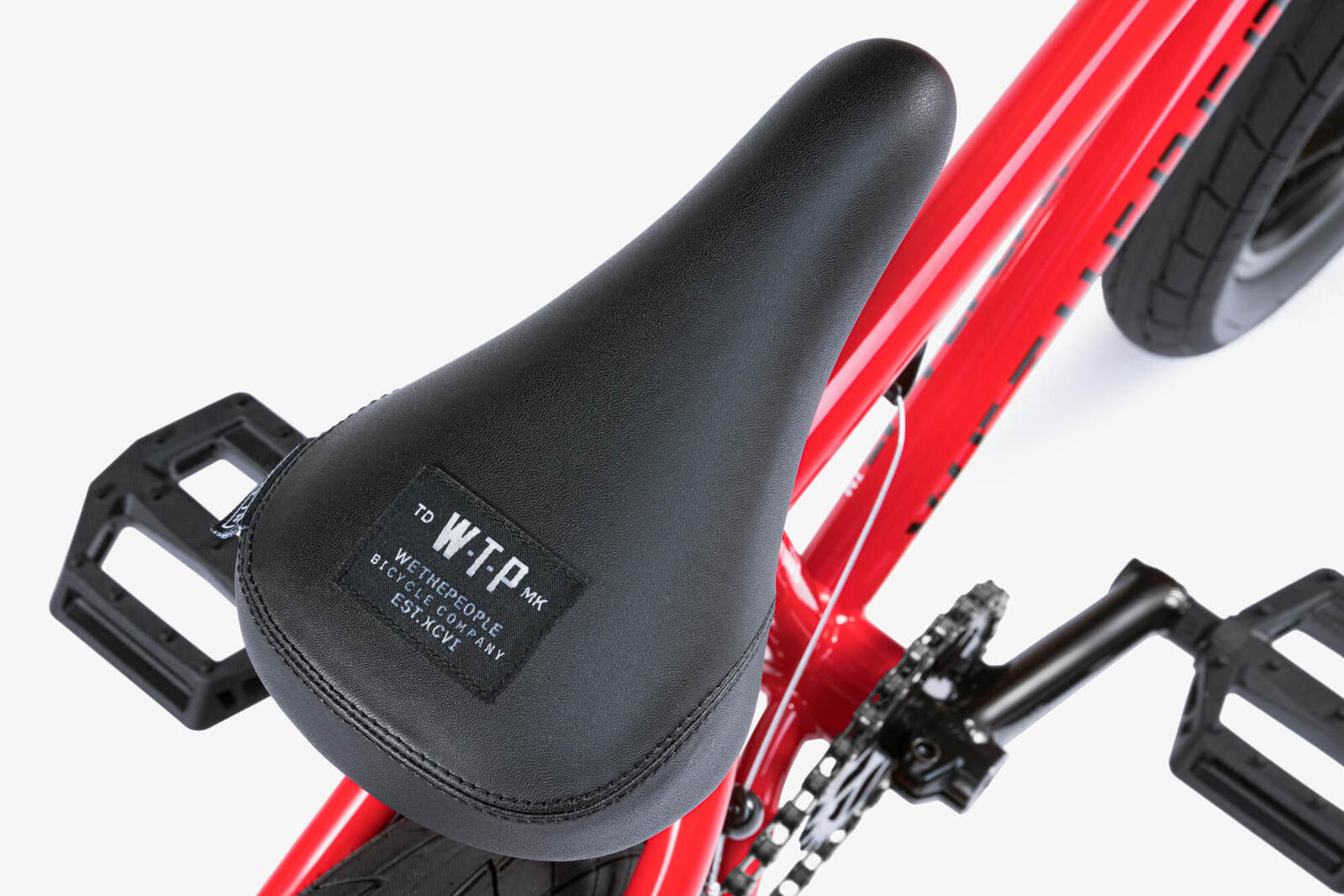

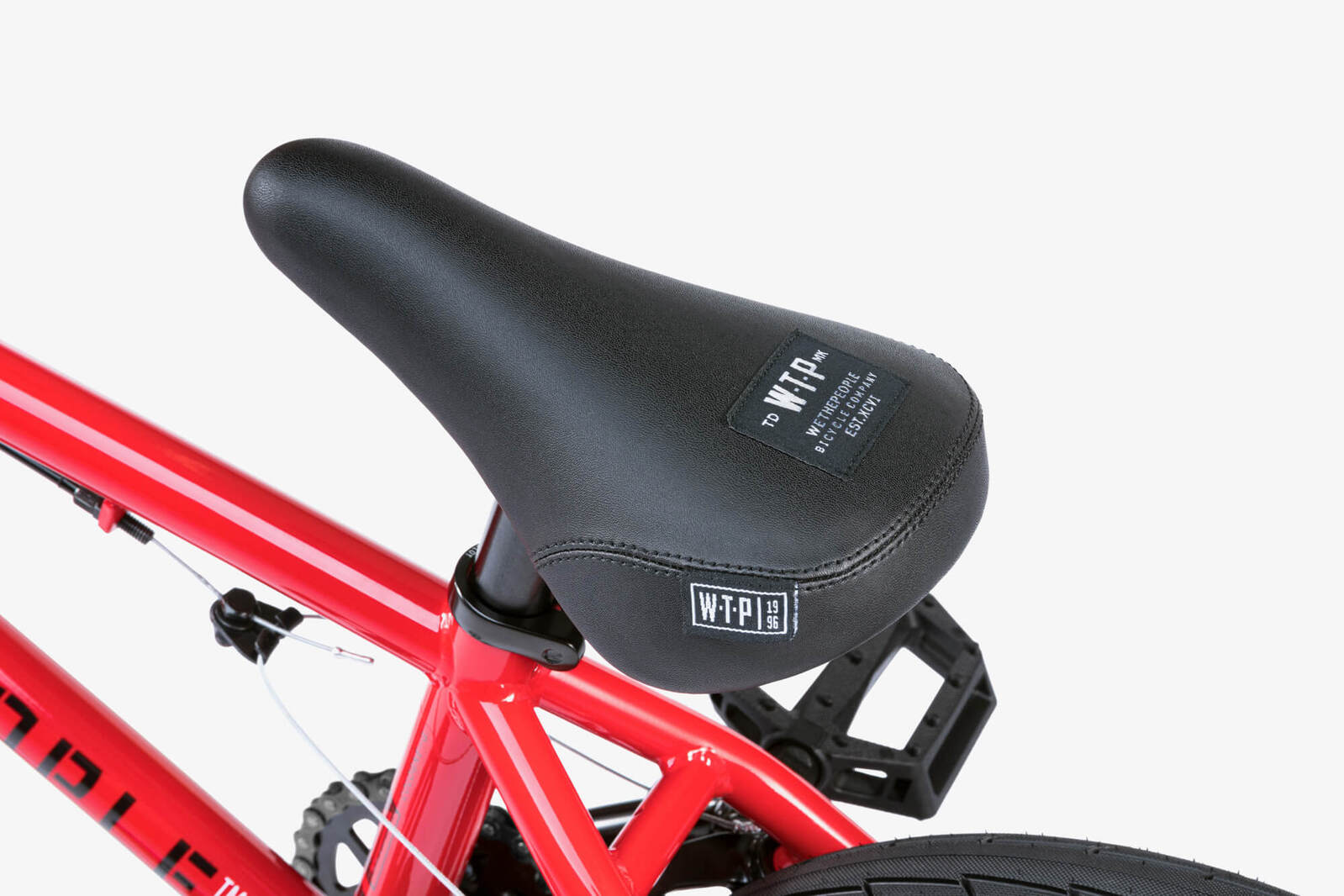

SEAT - WETHEPEOPLE "RIOT" junior combo seat

SEAT CLAMP - ÉCLAT "PURE" seat clamp, 6061-T6 forged alloy

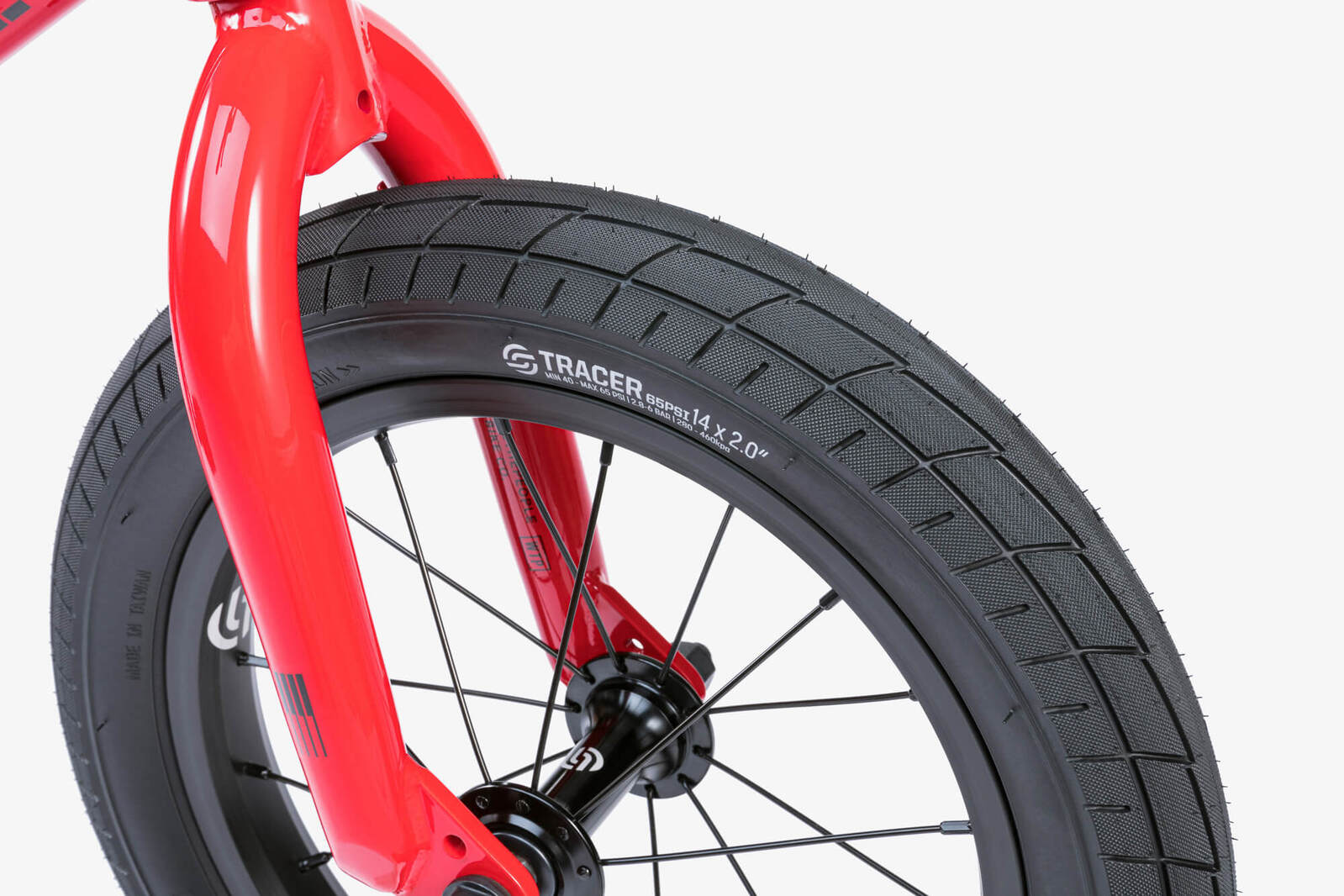

TYRES - SALT "TRACER" tyres, 2.0", front & rear



FRAME / BAR GEOMETRY

TOP TUBE LENGTH - 14"

CHAIN STAY LENGTH - 10.25"

HEAD TUBE ANGLE - 74°

SEAT TUBE ANGLE - 71.5°

BOTTOM BRACKET HEIGHT - 8.25"

STAND OVER HEIGHT - 6.5"

BAR RISE - 6.5"

BAR WIDTH - 22.4"

BAR BACK SWEEP - 8°

BAR UPSWEEP - 2.5°
