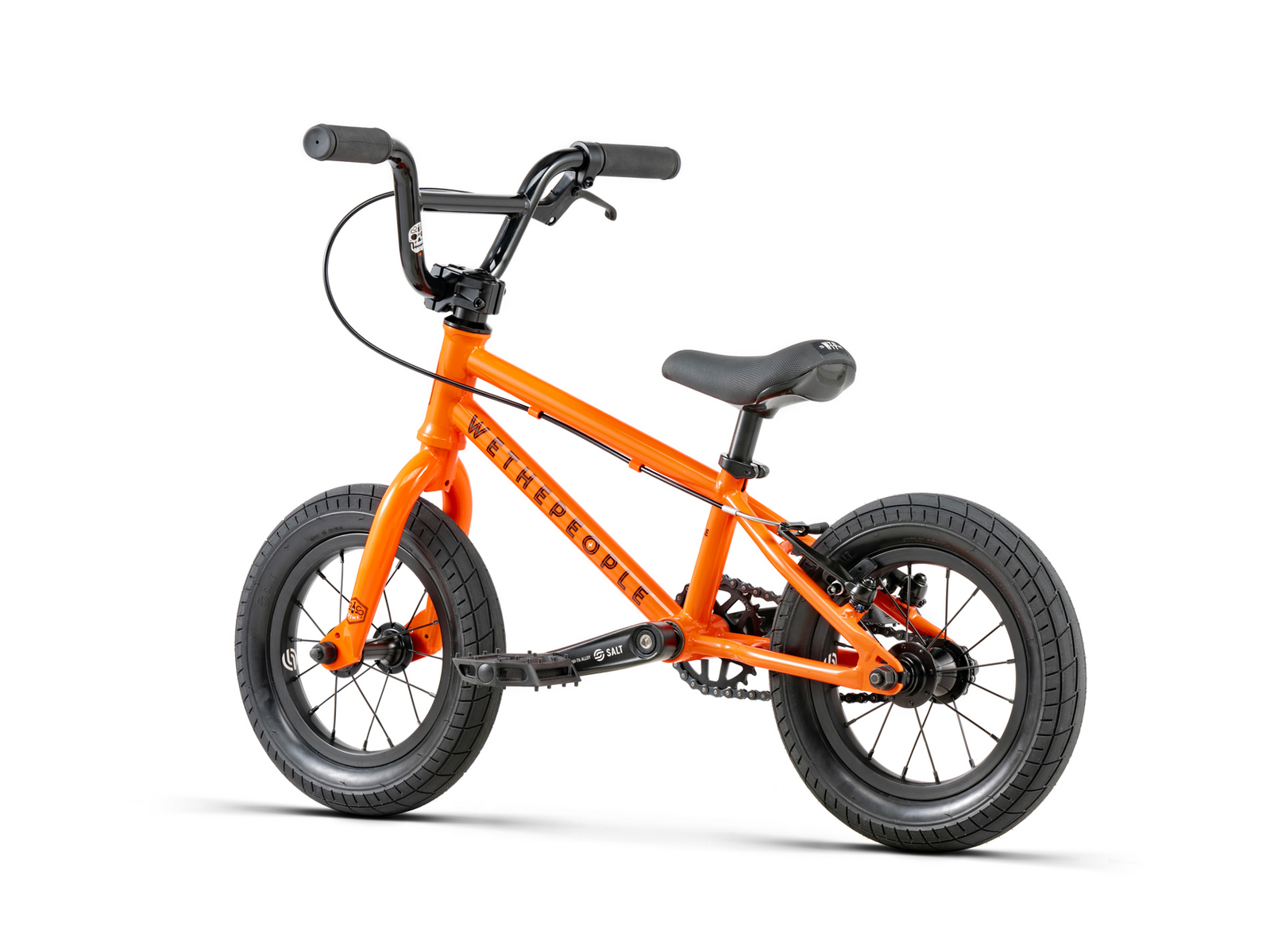

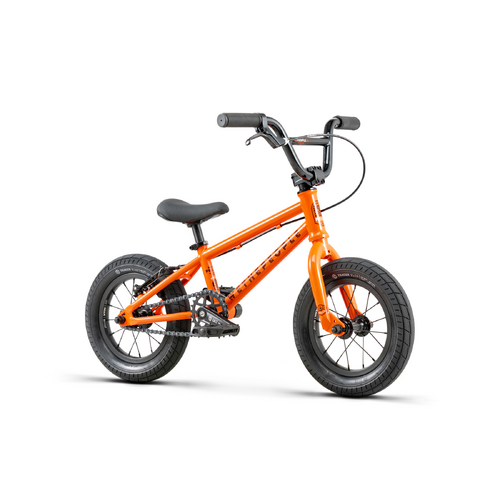

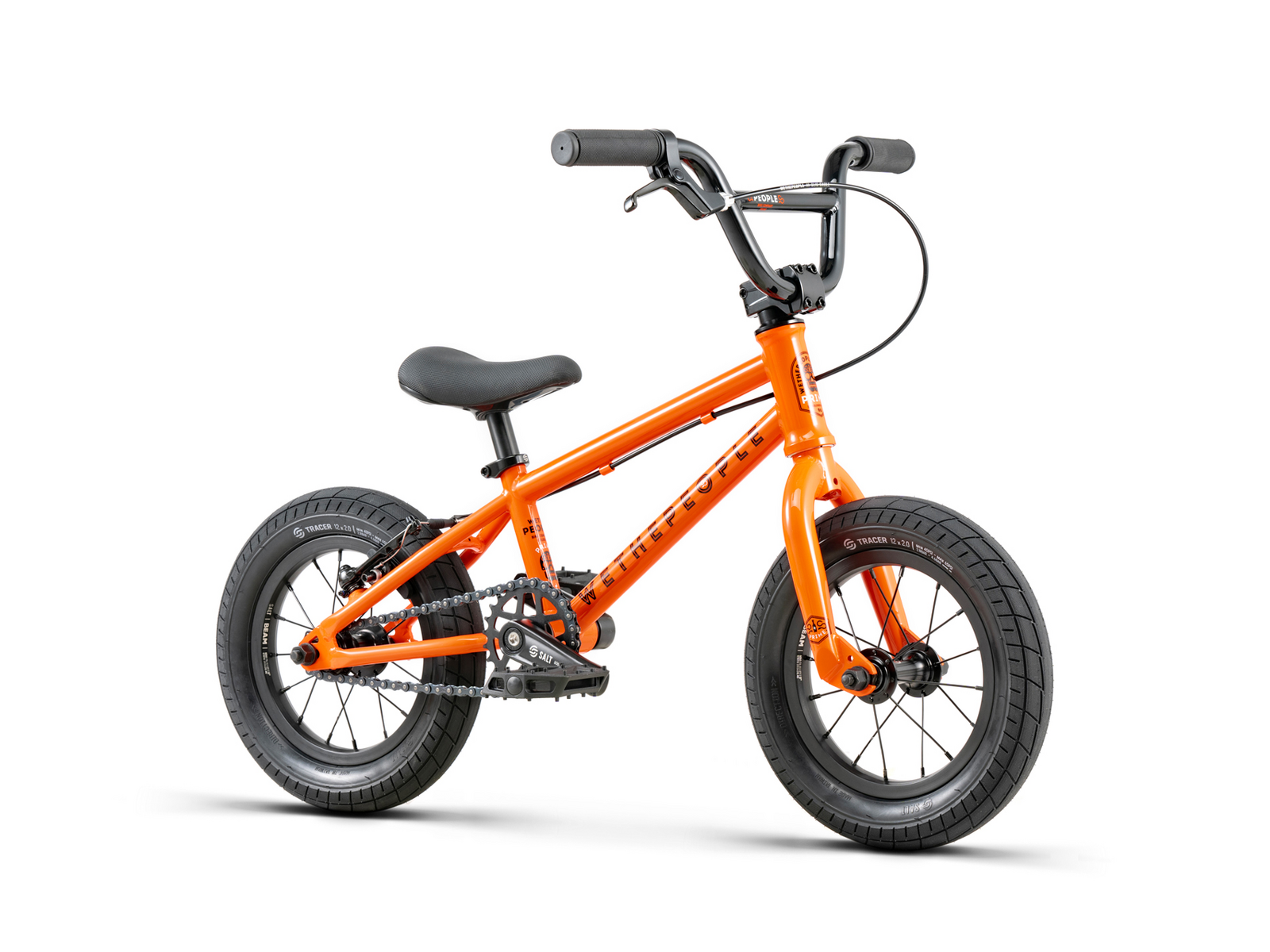

WETHEPEOPLE PRIME DRIVE 12 ORANGE BIKE

By popular demand, WTP’s 12” prime is back in full drivetrain form. The Prime drivetrain uses super slim tubing and a lightweight alloy crank making it incredibly lightweight, and perfectly suited for the younger rider. As always this scaled-down 12” shredding machine is built with Wethepeople’s legendary attention to detail and quality.

Specifications
Frame - Wethepeople 'Prime Drive' frame, 1020 Hi-Ten
Fork - Salt 'Prime Drive' fork, 1020 Hi-Ten, 26mm offset
Bars - Salt 'Prime' bar, 1020 Hi-Ten
Grips - Salt 'Prime' grips

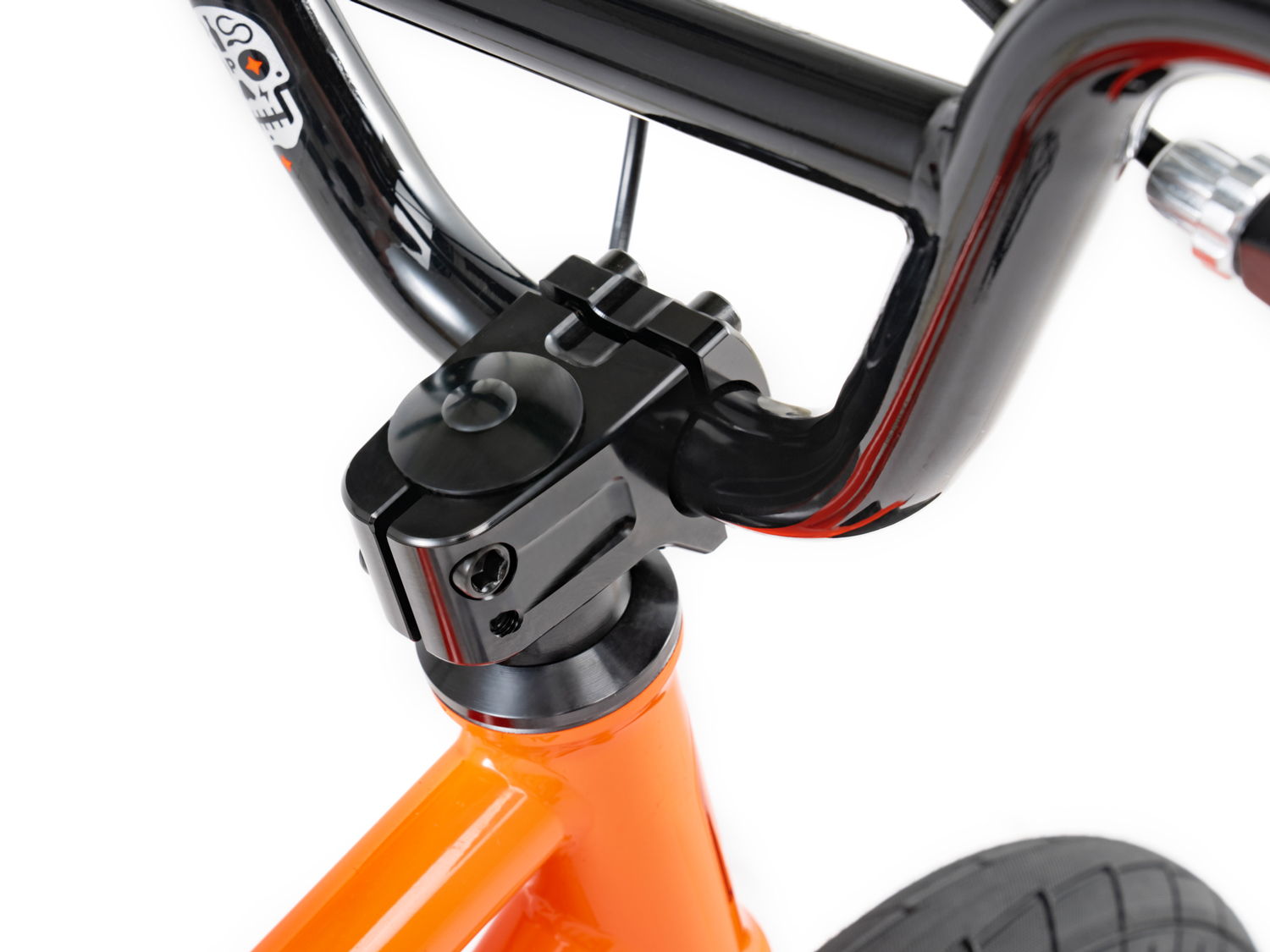

Stem - Salt 'Prime' frontload stem 30mm reach
Headset - Salt 'AM' int. headset, 1" sealed bearing

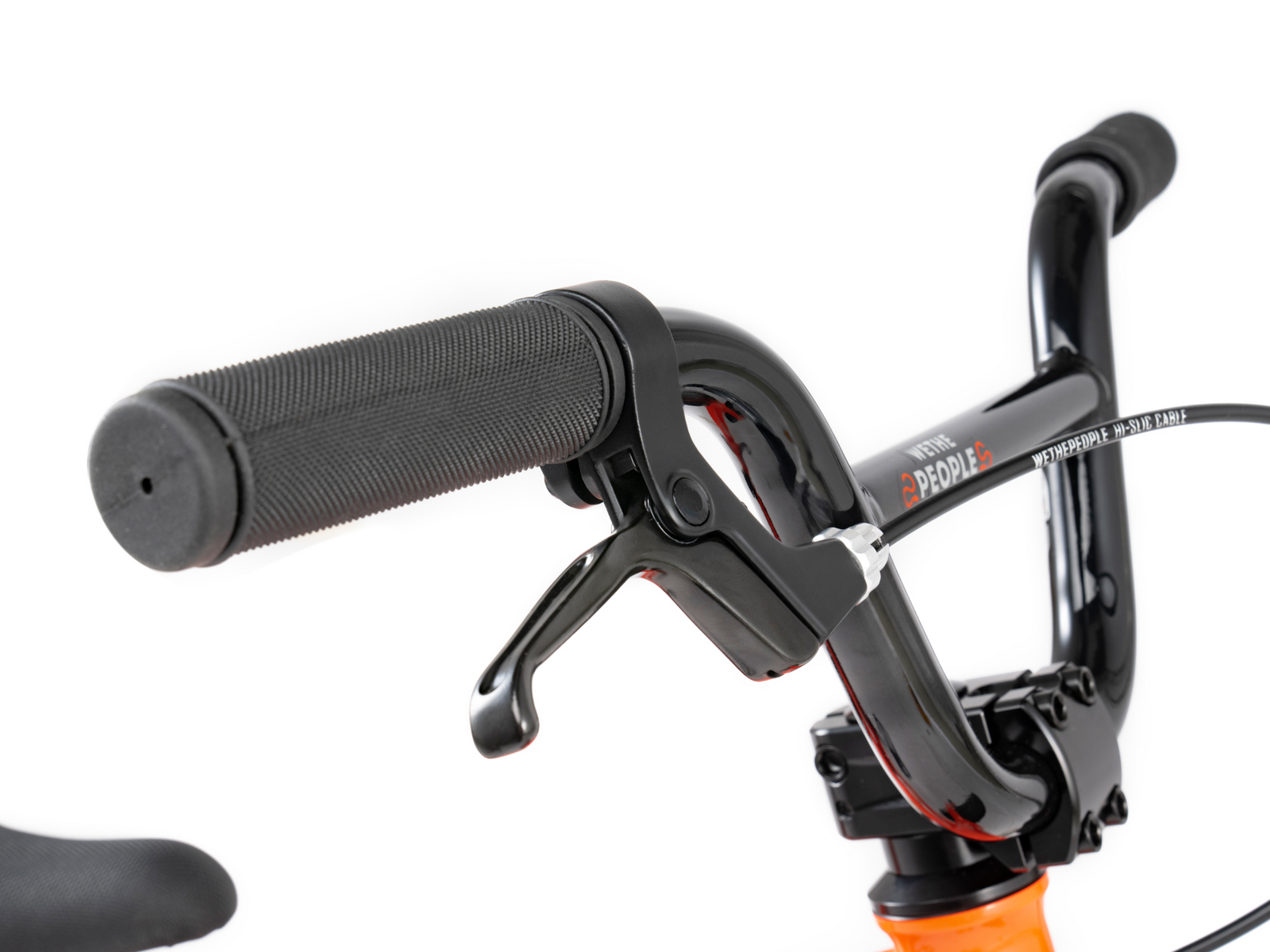

Lever - Salt 'Prime' brake lever, alloy, front & rear

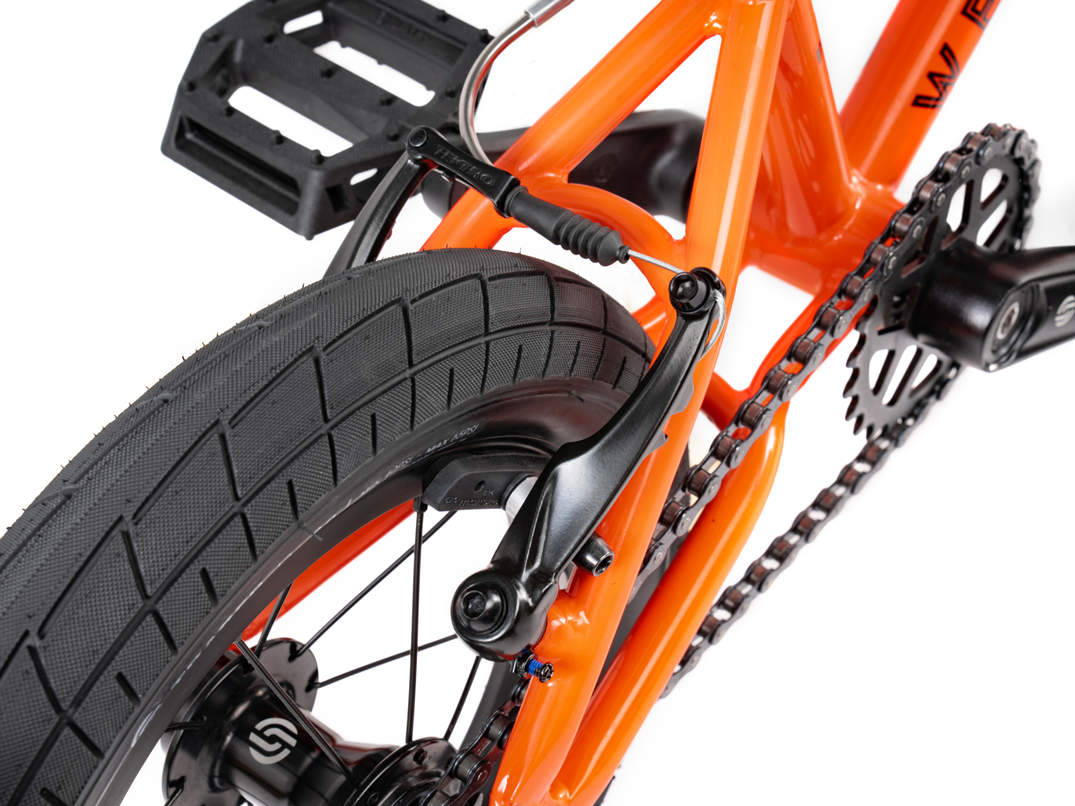

Brakes - Salt 'AM' alloy caliper brake front / Salt 'AM' alloy V-brake rear

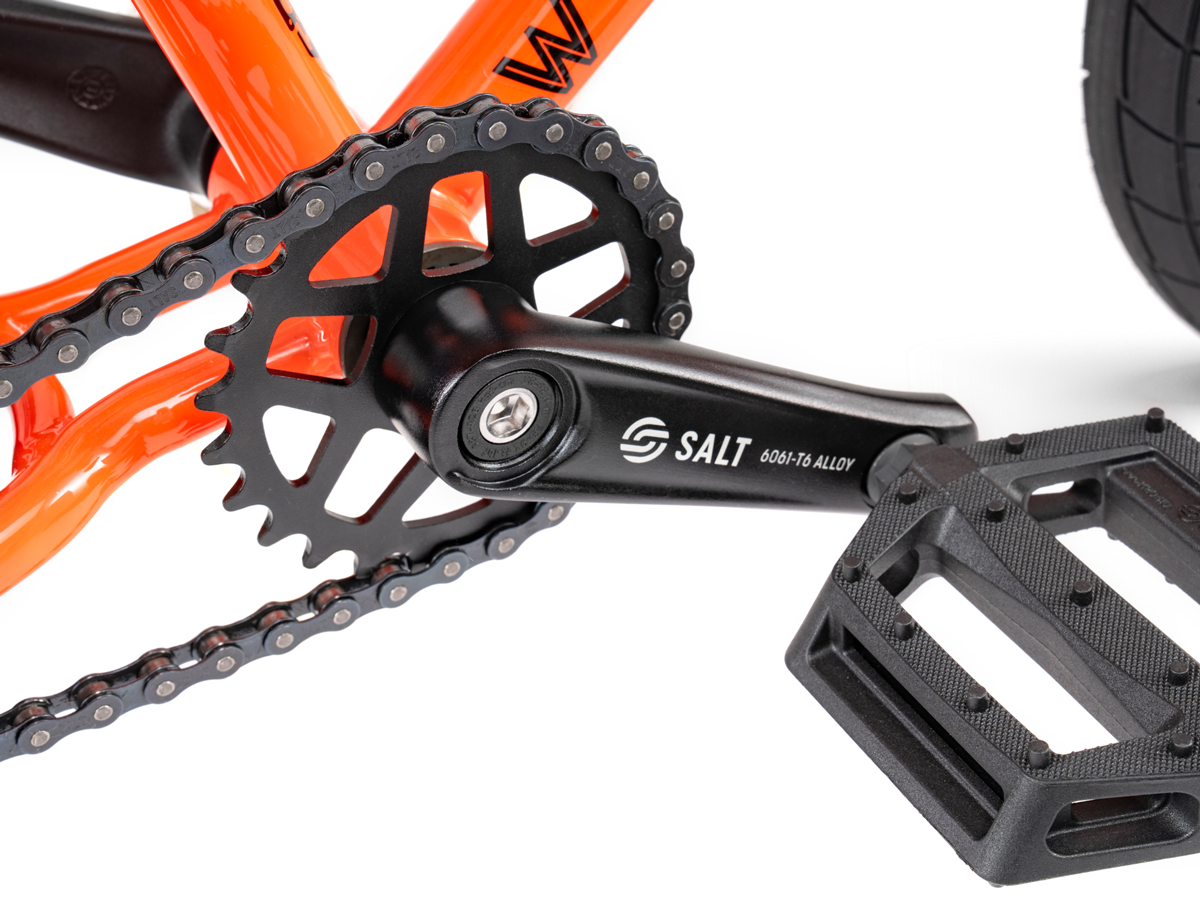

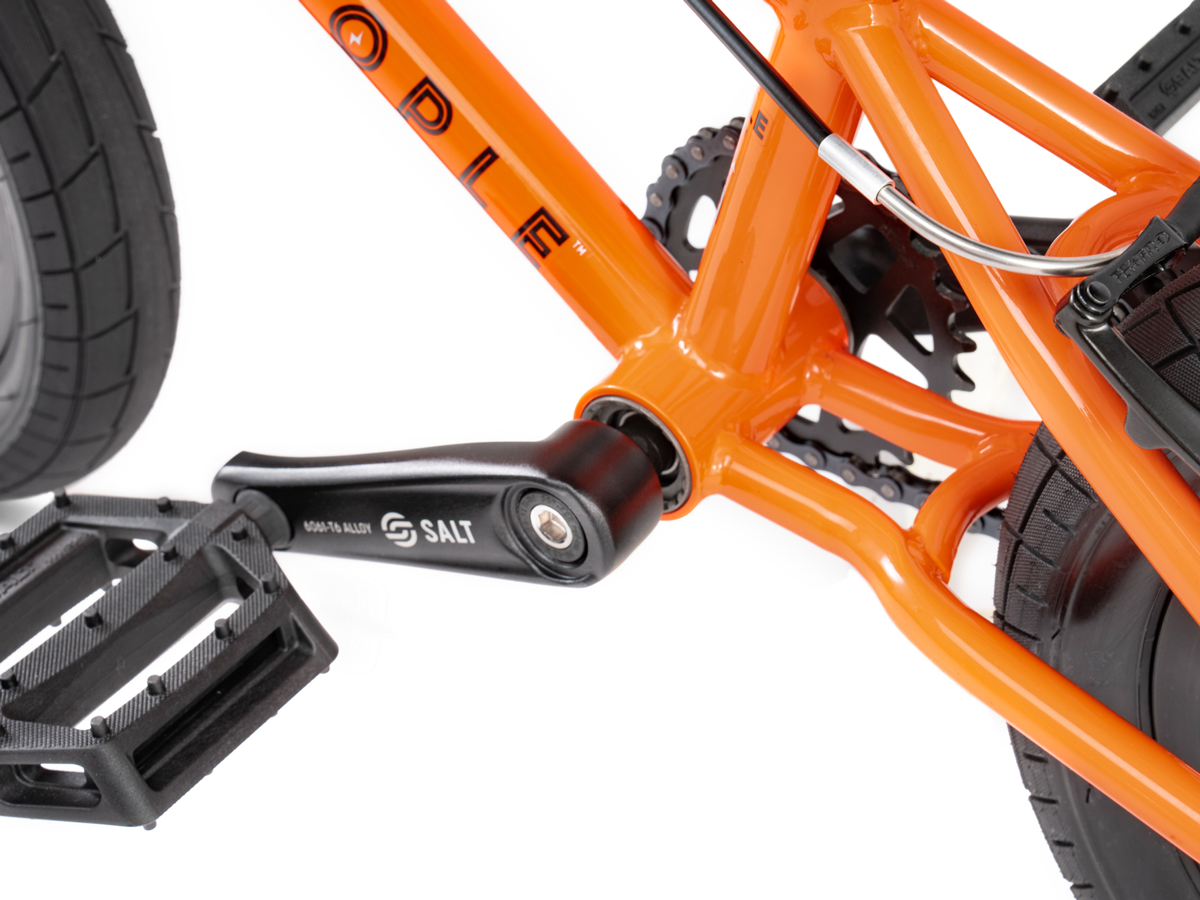

Cranks - Salt 'Prime' forged alloy 3pc crank, 92mm
BB - Salt 'Prime' BSA Bb, 68mm, sealed bearing
Pedals - Salt 'Junior Pro' pedals, nylon/fibreglass
Chain - Salt 'AM' chain, Z1 type
Sprocket - Salt 'Prime' sprocket, alloy, 25T
Driver - 1pc cassette driver, 10T, loose ball bearing

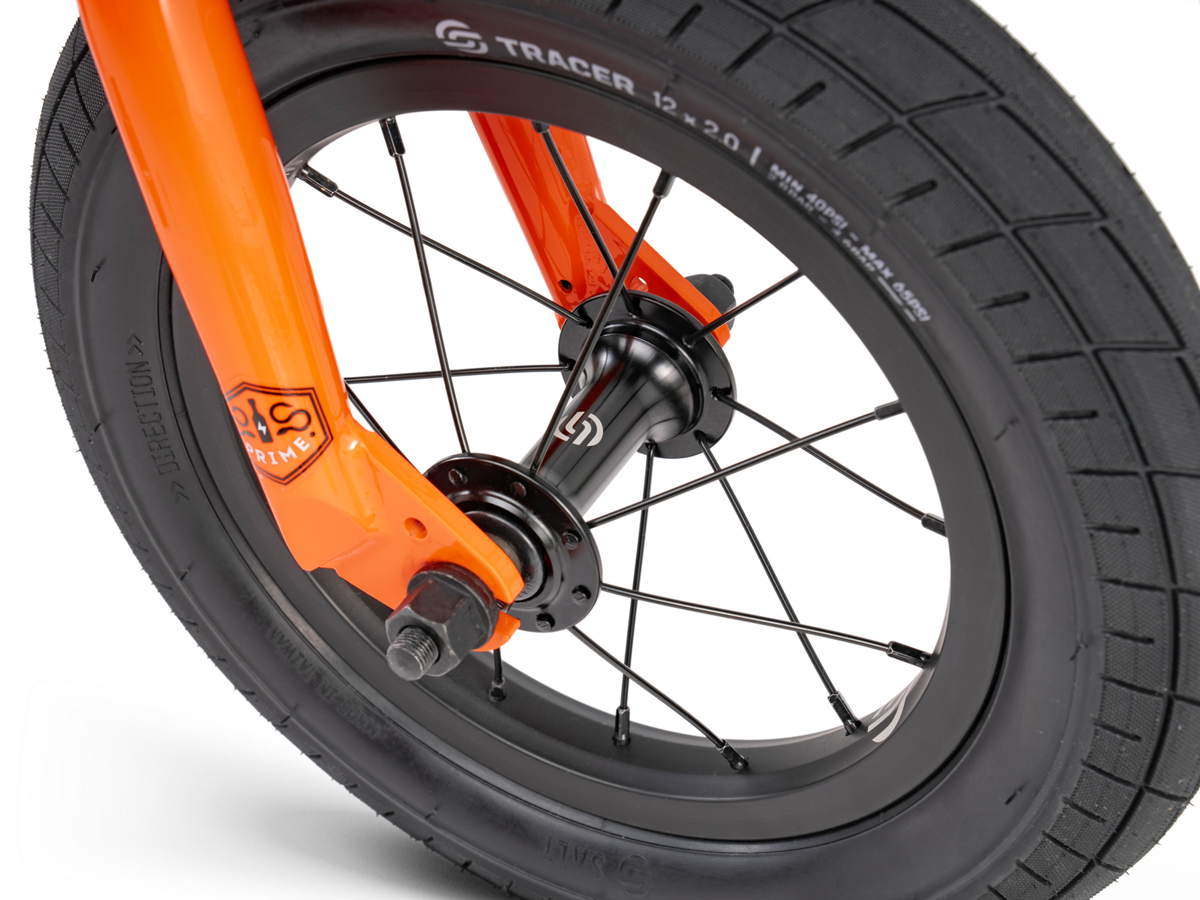

Front Hub - Salt 'Prime' hub, alloy, loose ball, 3/8"S axle, 20H
Rear Hub - Salt 'Prime' cassette hub, semi sealed, 10T, 3/8"S axle, 20H
Front Rim - Salt 'Beam' rim, single wall, 20H
Rear Rim - Salt 'Beam' rim, single wall, 20H

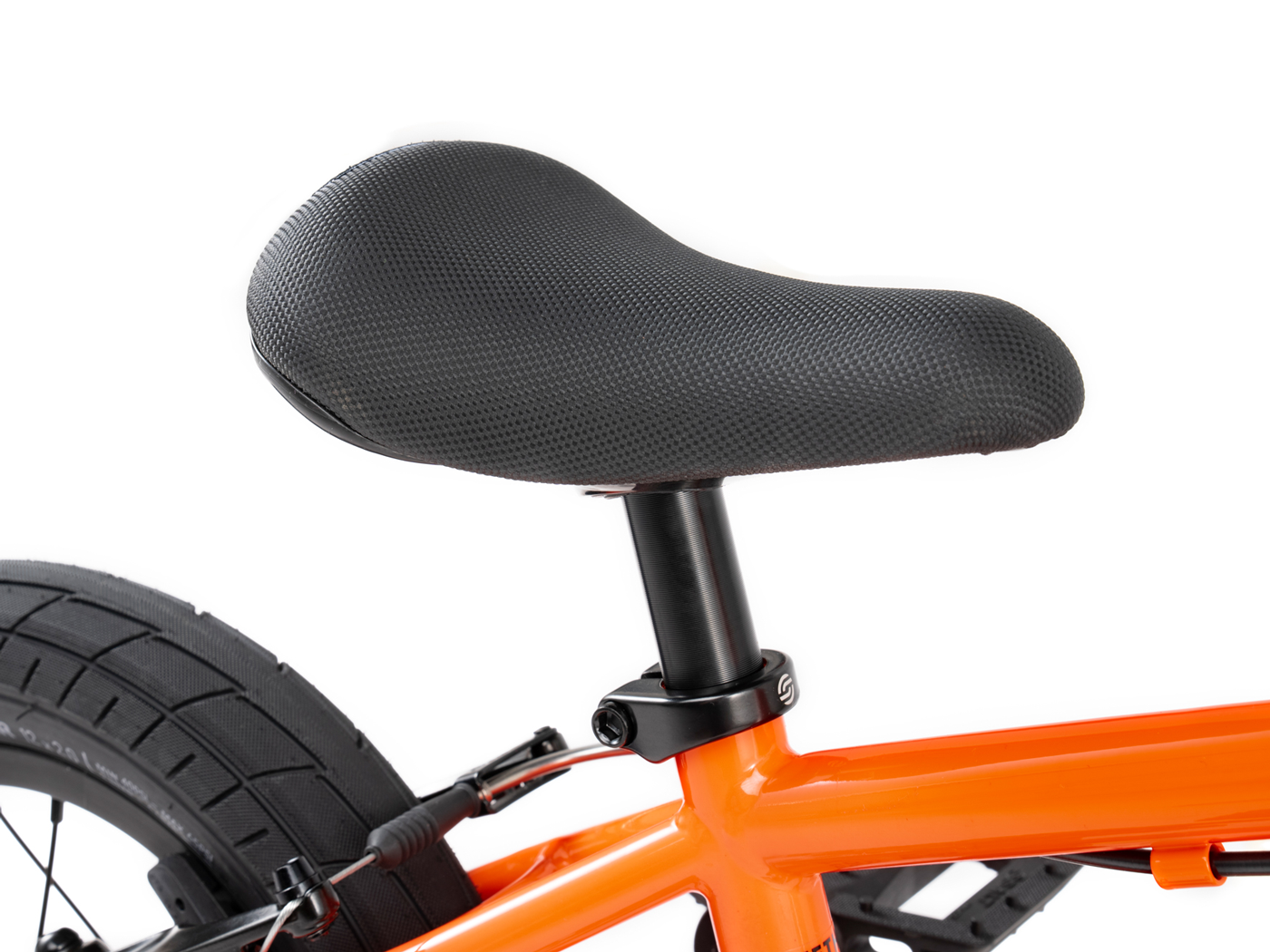

Seat - Wethepeople 'Prime' combo seat, alloy post
Seat Clamp - Salt 'AM' seat clamp, alloy
Tyres - Salt 'Tracer' tyres, 2.0", front & rear
Weight - 6.93kg

Frame Geometry
Top tube length - 12.5"
Chain stay length - 9.5"
Head tube angle - 73°
Seat tube angle - 71°
BB height - 7.1"
Standover height - 5.4"

Handle Bar Geometry
Bar Rise - 5.15"
Bar Width - 19.7"
Bar Back Sweep - 9°
Bar Upsweep - 2.5°
