Description
.jpg)

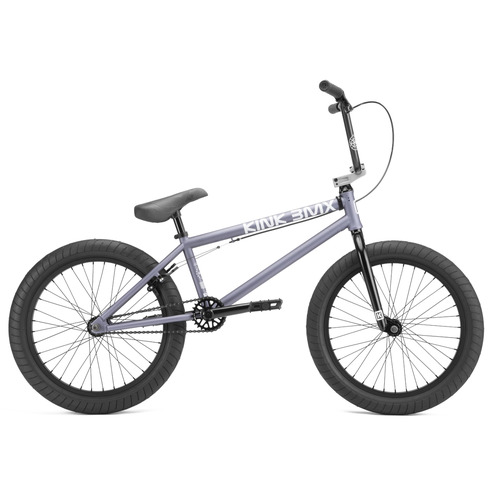

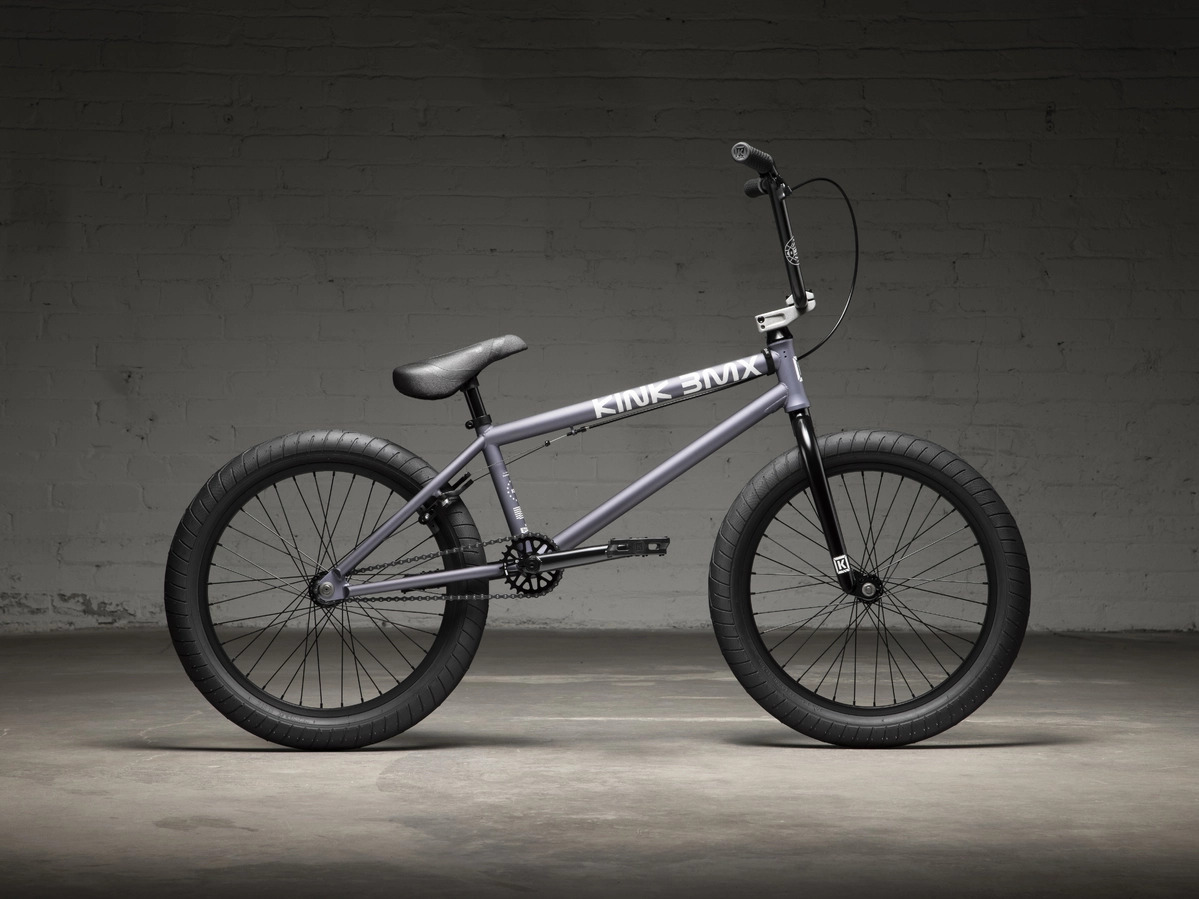

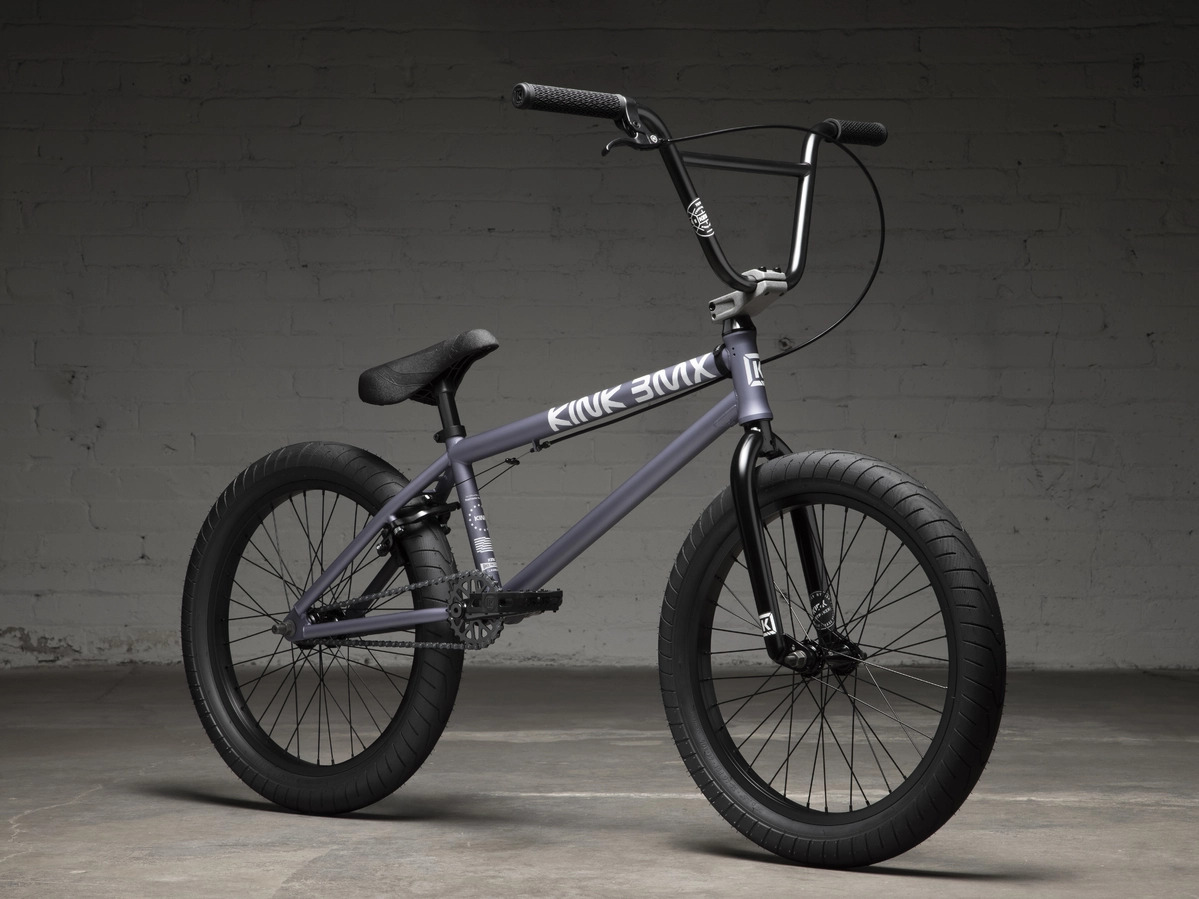

The 2022 Launch continues the legacy of a truly remarkable bike. This bike is still one of the best value priced models in the market, hands down, year after year. Available in Gloss Galaxy Green, Matte Storm Grey, and Gloss Iridescent Black colorways, the Launch pairs its great color selection with even better components.
The Launch is equipped with both a sealed integrated headset and sealed Mid bottom bracket, which drastically improves performance and virtually eliminates maintenance of these components. Combined with a parts package that includes Kink Stryker forks, Kink T875 8.75” bars, and Mission Triumph 3pc tubular chromoly cranks, this bike is a rookies dream.
GEOMETRY
| Toptube Length | 20.25" |
| Chainstay Length | 13.25" |
| Headtube Angle | 75° |
| Seattube Angle | 71° |
| Standover Height | 8.75″ |
| Bottom Bracket Height | 11.6" |
| Fork Offset | 32mm |
TECH SPECS
| FRAME Kink Launch 100% Hi-Ten Steel | PEDALS Kink Hemlock |
| FORK Kink Stryker 4130 Chromoly Steerer Tapered Fork Legs | CHAIN Mission 410 |
| BARS Kink T875 8.75" 100% Hi-Ten Steel | SPROCKET Mission Rank 25T |
| GRIPS Kink Paragon, Thrust Barends | SEAT Mission Warsaw Combo |

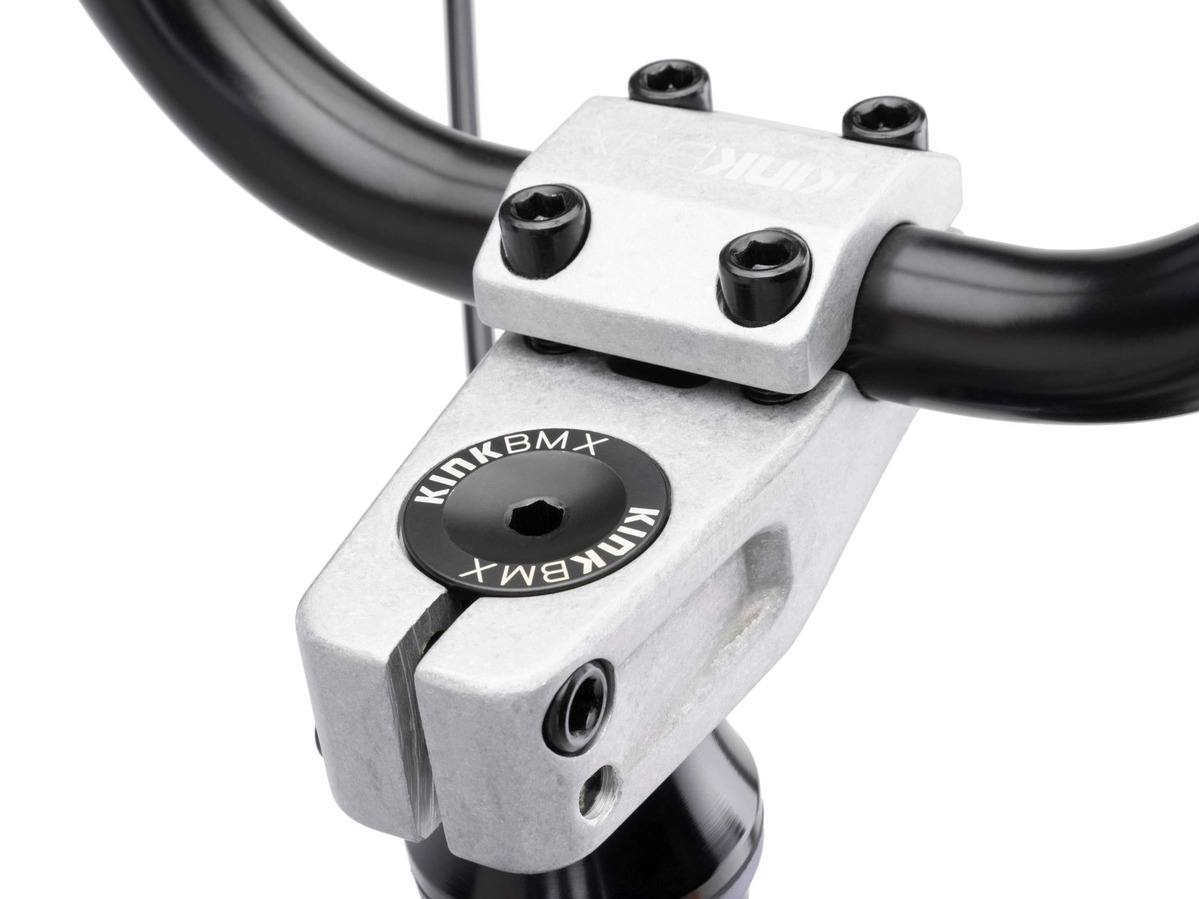

| STEM Kink Bold HRD 50mm | SEAT POST Mission Combo Steel Post |
| HEADSET Mission Sealed Integrated (41.8 x 45) | SEAT CLAMP Mission Slim Clamp |
| BRAKE LEVER Mission Token | FRONT HUB Mission Covert Unsealed 3/8" Axle |
| BRAKE CABLE Mission L3 Linear | REAR HUB Mission Function Semi-Sealed Cassette 14mm |
| BRAKES Mission Cease V2 | DRIVER 9T |
| CRANKS Mission Triumph 3pc Tubular Chromoly 170mm - 8 Spline | RIMS Mission X7 |

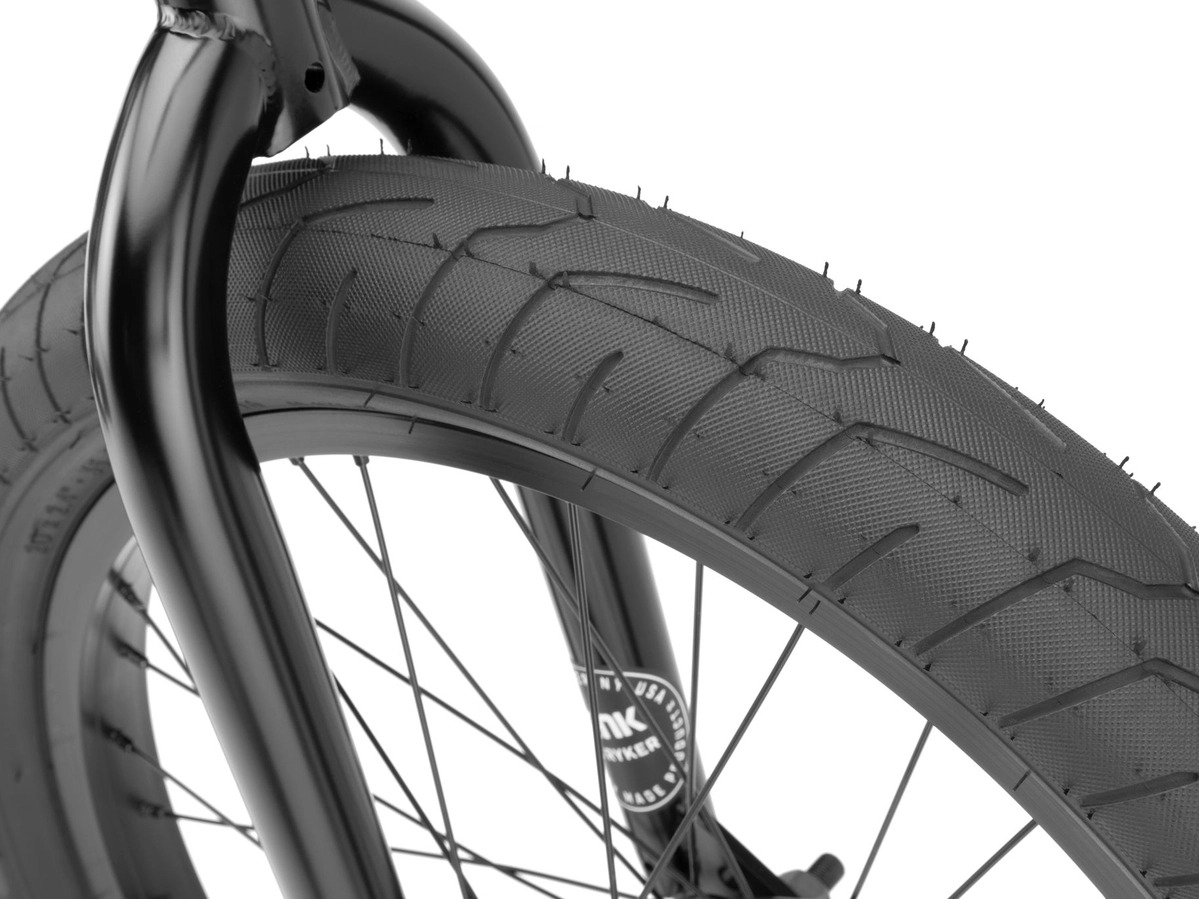

| BOTTOM BRACKET Sealed Mid 19mm | TIRES Kink Sever 2.4" |
| PEGS N/A | WEIGHT 26lb 4oz |
Specifications
| SKU | KIBI22K420GRY |
| Brand | KINK BMX |
| Unit Of Measure | ea |
