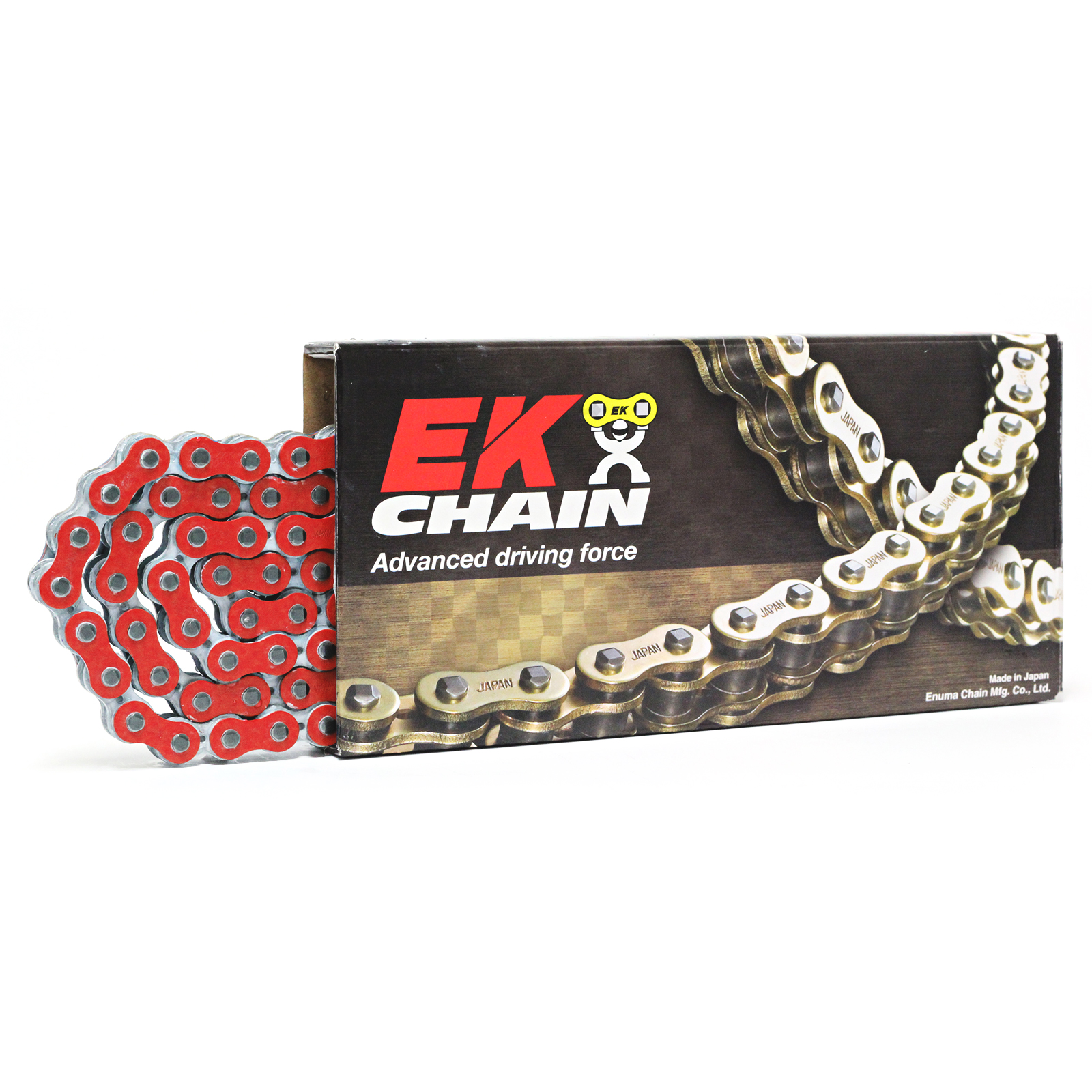

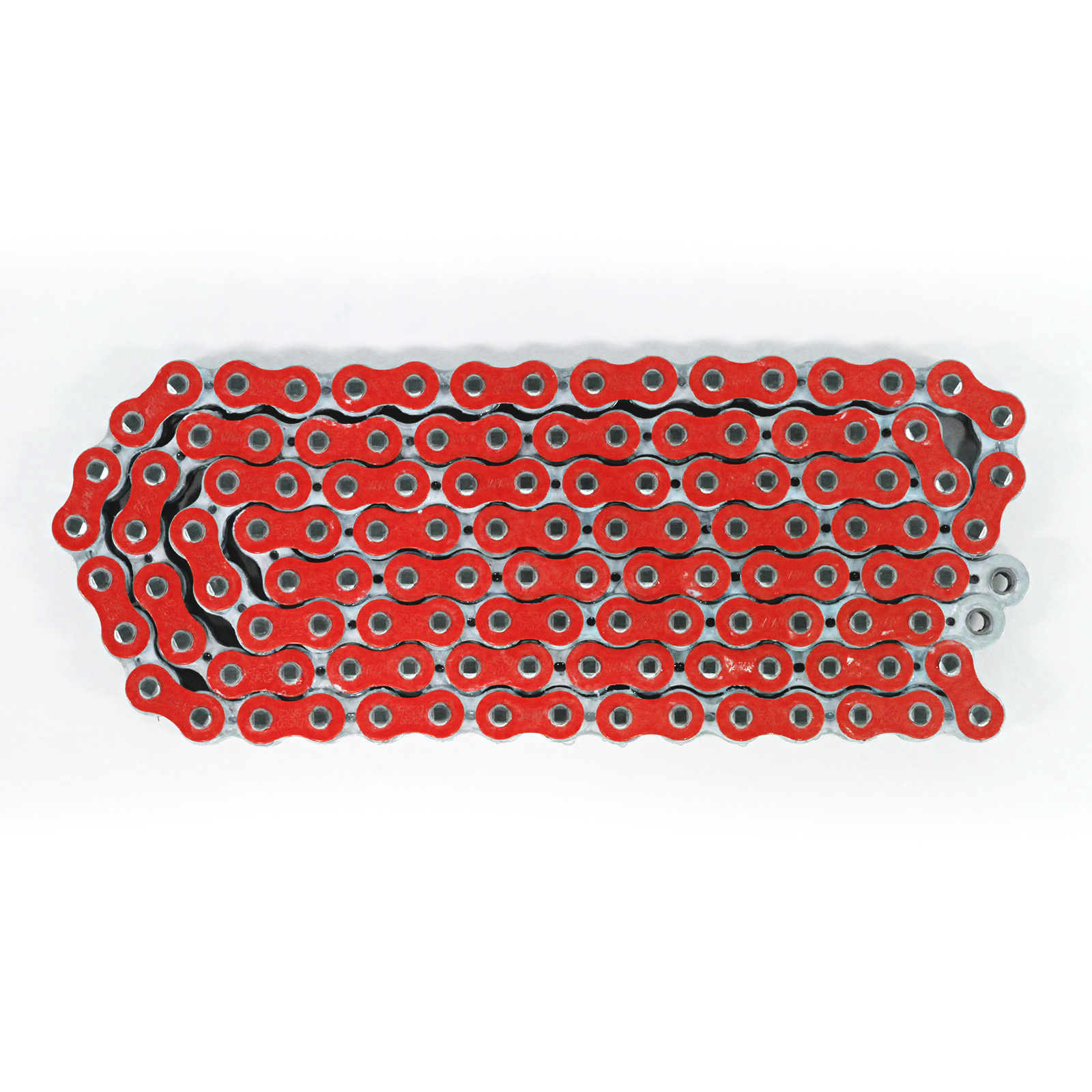

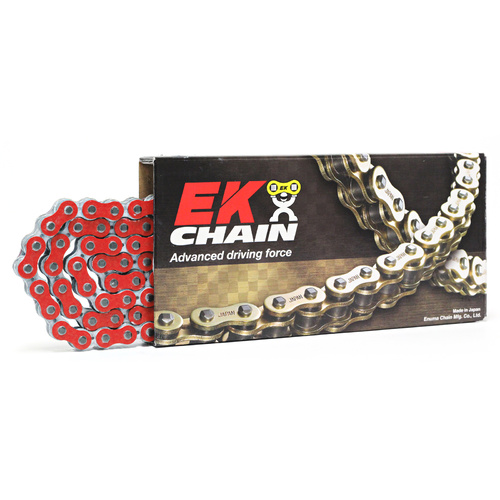

EK CHAINS 520 QX-RING HEAVY DUTY RED 120L RACE CHAIN

The SRX2 series chains are an excellent value for any machine. The SRX2 incorporates the Quadra X-Ring design which increases chain life from 1.5 to 2 times longer than a standard O-Ring chain. The QX-Ring design also reduces friction by 40% compared to the standard O-Ring chain.

All EK Chains motocross chains utilize our CRH pin treatment which provides an extremely hard outside coating and softer inside to increase strength and reduce chain wear. Exclusive to EK Chains, the Chormium Carbide pin surface coating also offers superior impact and shock absorption while reducing oxidation caused by natural elements.

The 520 SRX2 also features lightening holes in the side plates to reduce the chain's overall weight by 3% without compromising tensile strength. These holes also extend the service life of the chain by dissipating heat and helping reduce dirt and mud build up.

Specifications

• Pin: Diameter 5.38mm Length 19.95mm
• Roller: Diameter 10.16mm
• Plate Thickness: Inner 2mm, Outer 2mm
• Tensile Strength: 8,500 lbs.
• Wear Life Index: 1500 (Std. as 100)
• Weight (100 Links): 1.57kg
• Max Disp. CC's: Street 750, Dirt 650
